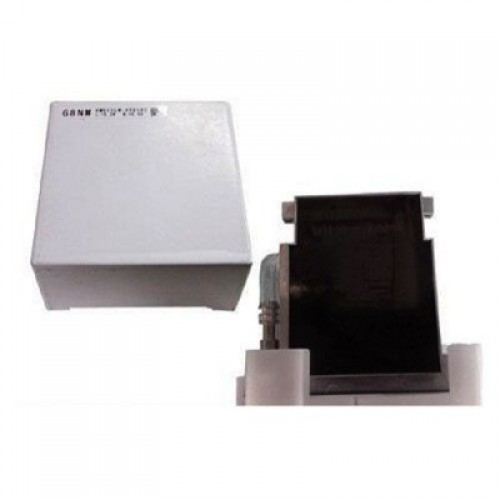

Konica KM512 LNX 35PL Printhead
Konica KM512 LNX 35PL Printhead
The Konica Minolta KM512 LNX-35 print head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only. This Konica Minolta print head has 512 nozzles with a droplet size of 35 picolitre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks.
To be used with:
Aestrik InWear S3304K5 / InWear S3308K5, Allwin C8 / C12 / H8, Anhui Liyu PT-KL / Apollo PTP1804-KL / Apollo PTP1806-KL / Apollo PTP1808-KL / Apollo PTP3204-KL / Apollo PTP3206-KL / Apollo PTP3208-KL / Apollo PTP18/3202-KC / Apollo PTP18/3204-KC / Apollo PTP18/3206-KC / Apollo PZ3204-KX / Apollo PZ3206-KX / Apollo PZ3208-KX, Maxima PZ3204-KX / Maxima PZ3206-KX / Maxima PZ 3208-KX, JHF Vista T903316LNX / T903312LNX / V12 / Vista3306 / S5004F / S5006FS, Myjet WB320 / LB320 / LE320, Rodin K4320-A / K4320-B, Skynet PC-series / HS-series
Remarks: Original
Specification:
|
Model
|
PRH-KON-011
|
| Technology | On-Demand Piezo Electri |
| Native Resolution | 360 dpi |
| Cal. Droplet Size | 35 pico litre |
| Tot. Amount of Nozzles | 512 (256 nozzles per line) |
| Nozzle Spacing | 70.5 microns |
| Print Width | 36.1 mm |
| Firing Frequency | 10 kHz |
| Ink Compatibility | Solvent |
| Heater | Not integrated |
