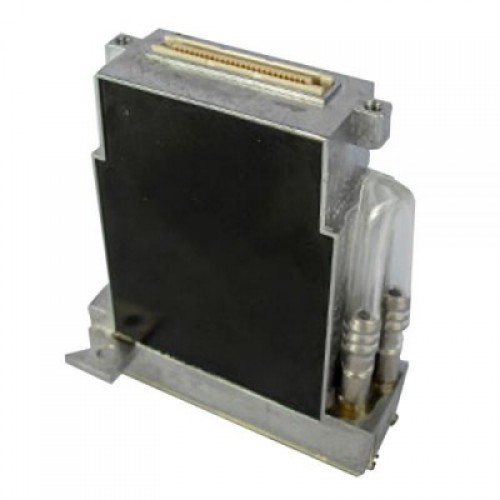

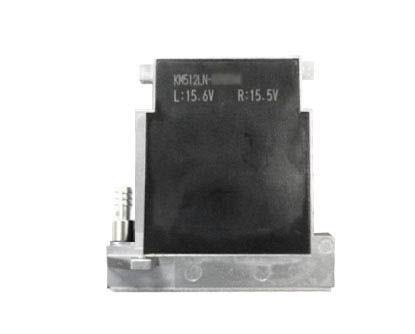

Konica KM512 LN 42PL Printhead
The Konica Minolta KM512 LN print head is a robust print head , shear mode, piezo on-demand print head that is usable in binary mode only. The Konica Minolta KM512 LN print head has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 LNX. This is Konica original print head and it includes the necessary waveform information.
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature
Specifications
- Technology: On-Demand Piezo Electric
- Native Resolution: 360 dpi
- Cal. Droplet Size: 42 pico litre
- Tot. Amount of Nozzles: 512 (256 nozzles per line)
- Nozzle Spacing: 70.5 microns
- Print Width: 36.1 mm
- Firing Frequency: 7.6 kHz
- Ink Compatibility: Oil Based, Solvent and UV Inks
- Heater: not integrated
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
On the Agfa :Anapurna Mv and :Anapurna Mw printers, the KM512 LN 42PL is used for Varnish (Mv) or White Ink (Mw). For all other colours, PPHKM512MN is used.
We recommend to change the head cables when installing a new printhead.
Printer compatibility:
Aestrik InWear S3304K5, Aestrik InWear S3308K5, Agfa Anapurna Mv, Agfa Anapurna MW, Allwin C12, Allwin C8, Dilli Neo Titan UVT-1606W, DYSS Apollo PTP18/3202-KC, DYSS Apollo PTP18/3204-KC, DYSS Apollo PTP18/3206-KC, DYSS Apollo PTP1804-KL, DYSS Apollo PTP1806-KL, DYSS Apollo PTP1808-KL, DYSS Apollo PTP3204-KL, DYSS Apollo PTP3206-KL, DYSS Apollo PTP3208-KL, DYSS Apollo PZ 3208-KX, DYSS Apollo PZ3204-KX, DYSS Apollo PZ3206-KX, Icontek 3306, JHF Vista 2506, JHF Vista H8 3304F, JHF Vista H8 3306F, JHF Vista H8 3308F, JHF Vista S5004F, JHF Vista S5006FS, Myjet LB320, Myjet LE320, Myjet WB320, Rodin K4320-A, Rodin K4320-B, Skynet HS-Series, Skynet PC-Series, Taimes T5, Taimes T7
