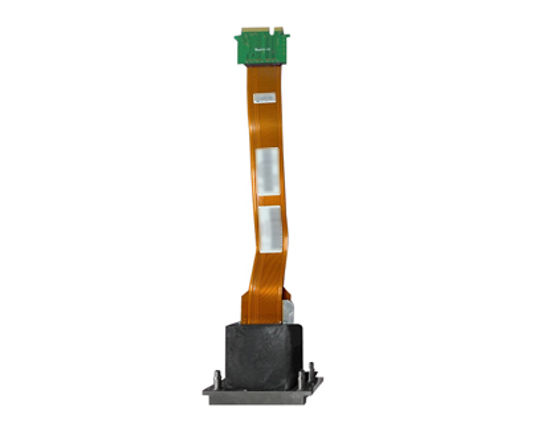

Ricoh GEN4 7-35PL Printhead
This printhead comes with the hose barbs which can easily be removed if needed.
The following items are expressly excluded from warranty coverage:
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Technical Specifications
- Size: 63 x 62.4 x 16,2 mm (excluding cables)
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing within a row: 0,1693 mm
- Nozzle spacing row to row: 0.529 mm
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 60° C
- Drop Volume Range: Binary mode: 7pl / Grey-scale mode: 7-35 pl
- Jetting Frequency: Up to 30 kHZ
- Surface tension: 28-35nM/m
- Viscosity range: 10-12 mPas
- Grey scale: 4 levels
- Number of ink ports: 2 x dual
- Life: 100 billion actuations per nozzle
This printhead carries a manufacturer warranty.
Country of origin : Japan
Printer compatibility:
Agfa Jeti 3020 Titan, Agfa Jeti Titan X, Anajet mPower, Anajet MPower MP10i, Anajet MPower MP5i, CET Color X-Press 500Q, Digitex Gunsjet SF-1914, Digitex Gunsjet SR-1808, Digitex Gunsjet SR-2508, Digitex Gunsjet SR-3208, Digitex Gunsjet UF4547, Durst Omega 1, Durst Omega 2, DYSS Apollo GF2616-08F, DYSS Apollo GF2616-10FFW, DYSS Apollo GF2616-10FRW, DYSS Apollo GF2616-12F, DYSS Apollo GF2616-12S, DYSS Apollo GF2616-14SFW, DYSS Apollo GF2616-14SRW, DYSS Apollo GF2616-16F, DYSS Apollo GF2616-16SFWFV, DYSS Apollo GF2616-16SRWRV, DYSS Apollo GH1600-08F, DYSS Apollo GH1600-08SF, DYSS Apollo GH1600-08SR, DYSS Apollo GH1600-10FM, DYSS Apollo GH1600-12S, DYSS Apollo GH1600-12SFWFV, DYSS Apollo GH2200-08F, DYSS Apollo GH2200-08SF, DYSS Apollo GH2200-08SR, DYSS Apollo GH2200-10FM, DYSS Apollo GH2200-12S, DYSS Apollo GH2200-16SFWFV, DYSS Apollo GH2600-08F, DYSS Apollo GH2600-08SF, DYSS Apollo GH2600-08SR, DYSS Apollo GH2600-10FM, DYSS Apollo GH2600-12S, DYSS Apollo GH2600-12SFWFV, Gandy Digital Domin8tor, Ricoh Ri 2000, tek-Ind alfa digital SD50x70-R4
Printer compatibility
Product specifications
| Cable length | 440mm |
| Connection | Hose Barb |
| Type | Printheads |
