$1,730.00

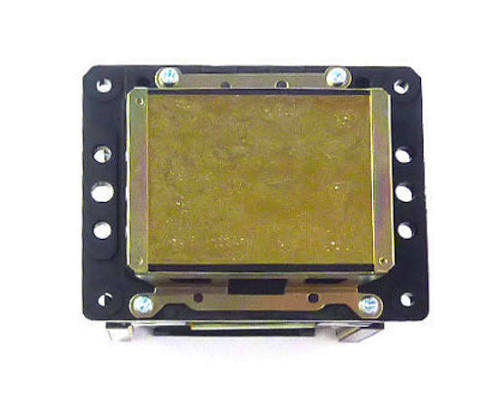

This printhead is suitable for Mutoh XpertJet solvent printers. This is the original Mutoh part (number DG-49580). It does not include the base. Although DH-40274 can also be used on XpertJet UV printers, Mutoh recommends using DG-43988 with UV inks to ensure best life span.

Specifications:

• Printhead type: Piezo Printhead
• Nozzle configuration : 180 nozzles x 8 lines/head
• Drop Volume Range (pl): 3.5 to 35
• Resolutions: 360x360, 360x720, 720x720, 720x1080, 720x1440 & 1440x1440 dpi
• Head Heights: Low: 1,5 mm / Middle: 2.5 mm / High: 4.0 mm

This printhead carries a manufacturer warranty. Country of origin : Japan

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

We recommend to change the head cables when installing a new printhead.

Printer compatibility:
Mutoh ValueJet 1638X, Mutoh ValueJet 1948X, Mutoh ValueJet 628MP, Mutoh XPJ-1641SR, Mutoh XPJ-1682SR, Mutoh XPJ-1682WR
