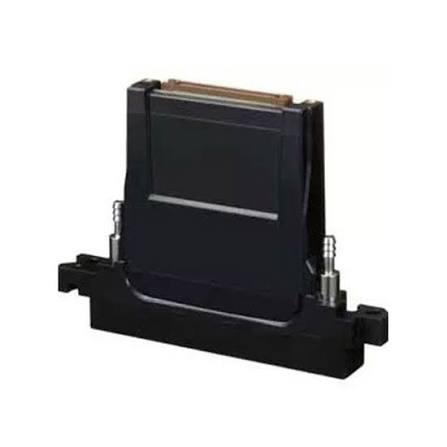

Konica KM1024i LHE 30PL Printhead
The Konica KM1024i LHE 30PL Printhead is high speed, high productivity with ‘independent’ firing technology – not limited by the low speeds of older ‘shared wall’ technology. Proven in a wide range of single-pass systems, providing print up to 80 meters per minute from a single row of heads. The KM1024i printhead is available in 6, 14 and 30pl drop sizes. This Konica Minolta KM1024i LHE 30PL printhead is the large native drop volume variant (30pl) for UV inks (integrated heater). This is the genuine Konica KM1024i LHE 30PL Printhead and not the alternative Konica KM HS1000. The Agfa part number is D2+75502060010S. The Polytype DigiCup printer uses for the white PPHKM18435 and PPHKM19089 for CMYK.
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Specifications
- Technology: Piezo Drop On-Demand
- Grey scale: 8 levels
- Native Resolution: 360 dpi (4 rows x 90 dpi)
- Native drop volume (L): 30 pl
- Max. Drops in Greyscale: 8 drops
- Tot. Amount of Nozzles: 1024 (256 x 4 rows)
- Print Width: 72.12 mm
- Max Firing Frequency: 27 kHz
- Drive Voltage: 13+-3V
- Ink Compatibility: Solvent, Oil, UV inks.
- Heater: integrated
- Recommended temperature: under 55 degrees C
- Dimensions: W131mm x D18mm x H94mm
- Weight: less than 150g
This printhead carries a manufacturer warranty. Country of origin : Japan
We recommend to change the head cables when installing a new printhead.
Printer compatibility:
Agfa Anapurna 100, Agfa Anapurna H2500i LED, Agfa Anapurna M2050i, Agfa Anapurna M2500i, Agfa Anapurna M3200i, Agfa Anapurna M3200i LED, Allwin S320UV, Allwin S500UV, Allwin UVT 2030, Allwin UVT 2512, Allwin UVT+ 2030, Allwin UVT+ 2512, Docan H1000, Flora HJ 5000UV, Human Digital Technology M-JET, IIJ ColourPrint-72, JHF Vista R3300, JHF Vista R6000, JHF Vista V300UV, JHF Vista V500UV, MGI JETvarnish 3D One, Optimum Digital KR Hybrid UV, Polytype DigiCup, Skyjet FT2512i, Skyjet FT3020i, Taimes T50UV, Yicong YD2512-KD
