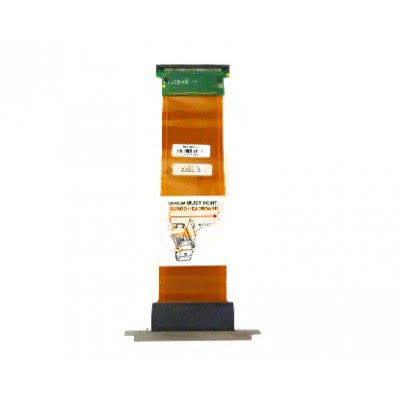

The Ricoh / Hitachi GEN3-E3 (MH1603/1803/1903/338690-001) printhead is suitable for HP FB700 / FB500 printers. This master printhead is a robust metallic construction offering resolution up to 360dpi for fast speed and high quality printing. There are 192 channels for a drop volume of 30 or 45 pl. This is HP / HP Scitex original printhead (number L1Q41-67065 replacing CQ114-67019). This printhead doesn't include the sub ink tank CH104-67001 which was discontinued by HP.

• defects related, in any way, to the use of non-original inks
• clogged, missing or deviated nozzles
• defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
• defects related to improper loading of media
• all other defects, failures or damage not considered manufacturing defects
• defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• defects that are merely cosmetic in nature.

Product Specifications

• Size: 7.8 x 120 x 35 mm (excluding cables)
• Head materials: SST, Pd and Epoxy Adhesive
• Nozzle plate surface: Non-coated SST
• Number of nozzles: 192 nozzles
• Nozzle spacing: 0.3387 mm
• Piezo type: D33 Stacked PZT
• Temperature control: Integrated Heater and Thermistor
• Operator temperature range: Up to 80° C
• Native drop volume: 30 pl - 45 pl
• Drop volume range: 12-50 pl
• Jetting frequency: Up to 30 kHZ
• Life: 100 billion actuations per nozzle
• This printhead carries a manufacturer warranty.
• Country of origin : Japan

Printer compatibility:
DYSS Apollo R220, DYSS Apollo UV-RF2200, HP Scitex FB500, HP Scitex FB550, HP Scitex FB700, HP Scitex FB750, HP Scitex FB950
