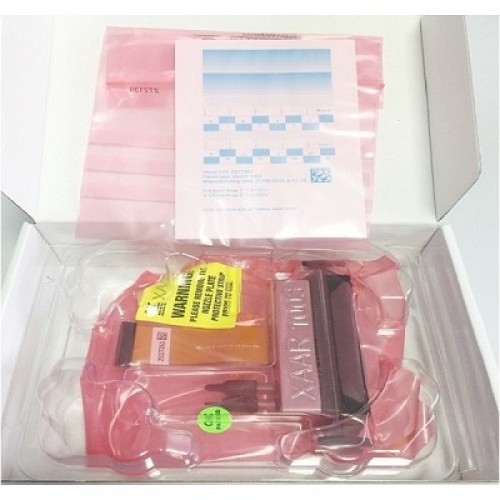

Xaar 1003-GS12C Printhead

The Xaar 1003 C with High Laydown Technology is the benchmark against which all other single-pass printheads are compared. With its all-round superior performance, this printhead builds on the market-leading Xaar 1002 and its predecessor, the original and ground-breaking Xaar 1001.

Aplication

• Floor tiles
• Special effects
• Tile cladding for building exteriors
• Wall tiles
• Glass printing

Active nozzles:  1000

Print swathe width: 70.5 mm

Number of rows:  2

Nozzle pitch (interleaved): 70.5 µm

Drop velocity*: 6 m/s

Nozzle density (nozzles per inch): 360 npi

Printhead weight (dry): 144 g

Ink type : Oil

Drop volume* (at 8 levels) : 12 to 84 pL

Number of grey levels* : 8

Typical firing frequency*: 6 to 12 kHz

Dimensions (WxDxH): 125x30x60 mm
