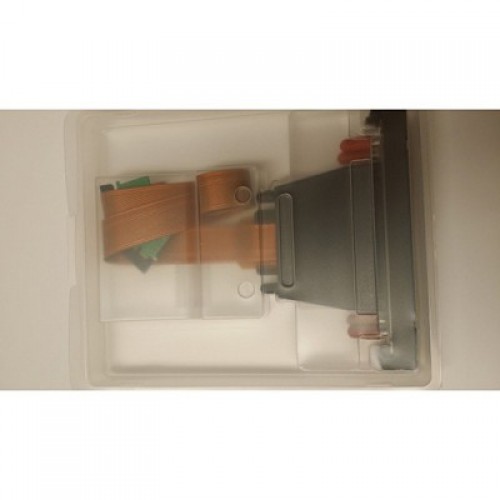

Ricoh GEN4L 27PL Printhead - MH2820
Ricoh GEN4L 27PL Printhead - MH2820
Technical Specifications
- Size: 13,2 x 120 x 75,5 mm (excluding cables)
- Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)
- Nozzle Plate Surface: Non-wet coating
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing: 0,1693 mm
- Piezo Type: D33 Stacked PZT
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 80° C
- Native Drop Volume: 27 pl
- Drop Volume Range: 27-54 pl
- Jetting Frequency: Up to 30 kHZ
- Life: 100 billion actuations per nozzle
