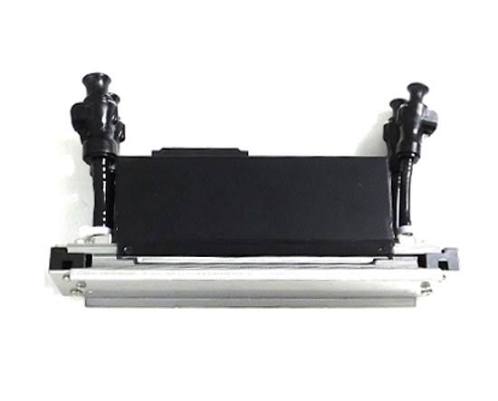

Kyocera Inkjet Printhead KJ4A-0300

Price:

$3,201.00

SKU:

PPHKY82406

Brand:

Kyocera

Condition:

New

Availability:

In Stock

Product Description

This original Kyocera KJ4A-0300 printhead is designed for high speed single-pass applications with printers using aqueous ink, multi-pass using UV inks. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swathe. We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:

defects related, in any way, to the use of non-original inks
clogged, missing or deviated nozzles
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.

Specifications

Ink Type: UV ink
Dimensions: 200 × 36 × 61.4mm
Dry Weight: 540g
Total Nozzles: 2.656 (2x 1328)
Standard Resolution: 300 x 300dpi
Print Width: 112.35mm
Max. Drive Frequency: 30kHz
Drop Volume: 4, 6, 10 and 14pl
Max. Sprint Speed: 158m/min
Typical ink viscosity: 7.0-7.5 mPa
This printhead carries a manufacturer warranty.
Country of origin : Japan

Printer compatibility:
CET Color K-500HS, Docan FR3210T, Docan H3000, Fluidcolor Z105F, Handtop HT1600UV, Handtop HT2500UV HR8, Handtop HT3200, Handtop HT3200UV, Handtop Z105F, Imprimo Titanium UV Flatbed, Polaroid T-REX, Vanguard VK300D-HS, Vanguard VKLR3200
