Konica 6988H (1024i-13pl) UV Printhead

To be used with: Konica

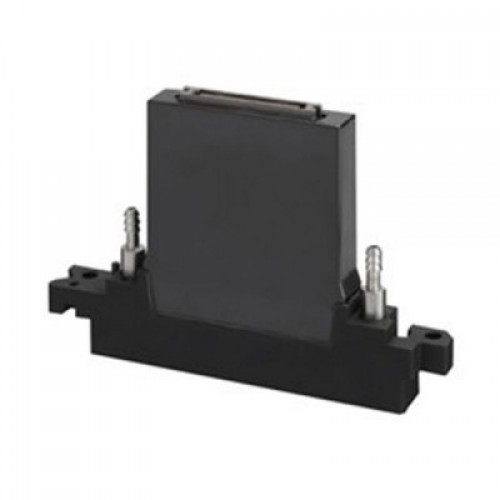

Konica KM1024 LHB 42PL UV Printhead
Remarks: Original

Printhead Name	KM1024SHB	KM1024MNB	KM1024MHB	KM1024LNB	KM1024LHB
Technology	Piezo Drop on Demand (Shared wall 3 cycle)
Resolution	180dpi × 2lines = 360dpi
Number of Nozzles	512nozzles × 2lines = 1024nozzles
Nozzle Pitch	70.5 micrometer (141 micrometer 2lines)
Drop Size	6 pl	14 pl		42 pl
Max Frequency	30.0 kHz	12.8 kHz		6.7 kHz	7.6 kHz
Printing Width	72mm
Dimensions	W131mm × D18mm × H89mm
Weight	150g
Grey scale	8 levels
