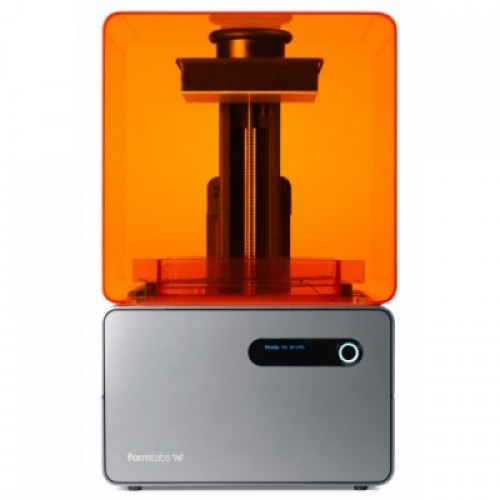

Form 1+ 3D Printer

Hardware

Dimensions

30 × 28 × 45 cm
12 × 11 × 18 in

Weight

8 kg
18 lbs

Operating Temperature

Suggested 18–28° C
Suggested 64–82° F

Temperature Control

N/A

Power Requirements

100–240 V
1.5 A 50/60 Hz
60 W

Laser Specifications

EN 60825-1:2007 certified
Class 1 Laser Product
405nm violet laser
120mW laser

Connectivity

USB

Optical Path

Open

Printer control

Push-button

Printing Properties

Technology

Stereolithography (SLA)

Peel Mechanism

Hinged Peel Process

Resin Fill System

Manual

Build Volume

125 × 125 × 165 mm
4.9 × 4.9 × 6.5 in

Layer Thickness (Axis Resolution)

25, 50, 100, 200 microns
0.001, 0.002, 0.004, 0.008 inches

Laser Spot Size (FWHM)

155 microns
0.0061 inches

Supports

Auto-Generated
Easily Removable

System Requirements

• Windows 7 and up
• Mac OS X 10.7 and up
• OpenGL 2.1
• 2GB RAM
•


Hardware Requirements

Formlabs Form 1 or Form 1+ 3D Printer

Features

• Simple print setup
• Auto-orient for optimal print position
• Auto-mesh repair
• Auto-generation of supports
• Rotation, scaling and duplication
• Layer slicer for path inspection
• .STL and .OBJ file input
• .FORM file output

Includes

• Finishing Tray
• Scraper
• Pre and Post-Rinse Tubs
• Rinse Basket
• Squeeze Bottle
• Flush Cutters
• Tweezers
• Disposable Nitrile Gloves
• PEC*PAD Wipes
• Microfiber cloth
