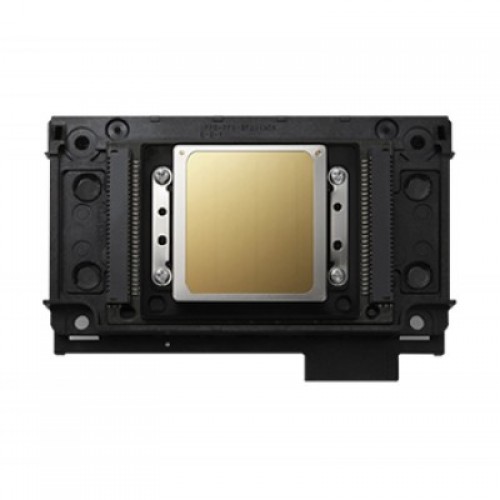

Epson F1080-A1 Printhead | 1080 Nozzle AQ Ink Printhead
Epson F1080-A1 Printhead - 1080 Nozzle for AQ Ink Applications
The Epson F1080-A1 printhead is a high-performance industrial printhead designed for AQ (aqueous) ink applications. With 1080 nozzles arranged in 6 rows, this printhead delivers exceptional print quality, precision, and reliability for a wide range of printing applications.
The Epson F1080-A1 features variable ink drop volume capability from 4.5 to 40 picoliters, providing excellent flexibility for different printing requirements. Its compact design and advanced nozzle technology make it an ideal choice for industrial printing systems.
Product Details
| Product Name | F1080-A1 |
| Brand | Epson |
| Ink Type | AQ (Aqueous) Ink |
| Number of Nozzles | 1080 |
| Number of Nozzle Rows | 6 |
| Maximum Ink Colors Supported | 6 colors (180 dpi/color) |
| Resolution | 180 npi 1 column, 360 dpi / 2 column |
| Effective Printing Width | 25.4 mm |
| Distance Between Nozzles | 180 dpi |
Technical Specifications
| Dimensions (W x D x H) | 84.9 x 57.2 x 42.6 mm |
| Weight | 60 g |
| Ink Drop Volume | 4.5 - 9 - 20 - 40 pl (variable) |
| Injection Frequency | 46 kHz (single point), 11.52 kHz (multipoint) |
| Corresponding Ink Viscosity | 3 ~ 5 mPa·s |
Whether you need precise ink deposition for aqueous ink applications, the Epson F1080-A1 printhead delivers versatile performance with its variable drop size capability from 4.5 to 40 picoliters. The 1080 nozzle configuration with 6 rows and support for up to 6 colors makes this printhead ideal for a wide range of industrial printing systems. Upgrade your printing capabilities with this reliable and high-performance printhead today.
